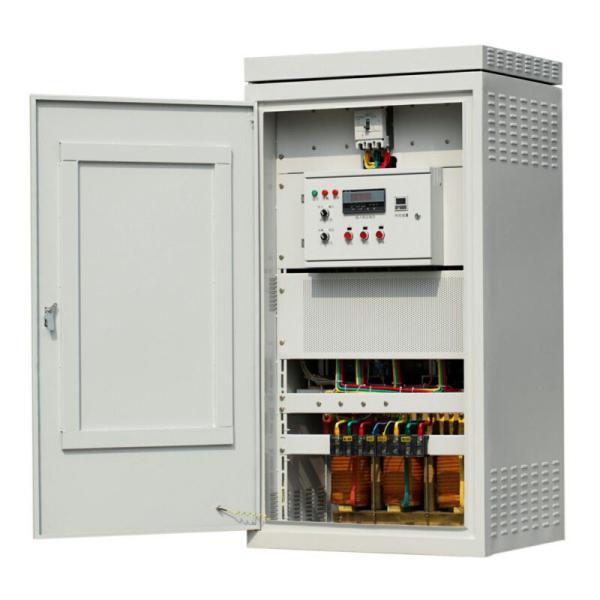

    Three Phase Intelligent Energy Saving Cabinet


    Product Introduction:

    This Series three-phase lighting energy saving cabinets are researched multi-function lighting energy saving equipment of stabilizing voltage, current-limiting and energy saving by our company. This products through the microcomputer real-time detection and analysis, calculation and find the best power supply power point, improve power factor of lighting circuit system and reduce lamps and lanterns and line working temperature, make sure the light can work normally, and reduce Lighting glare due to over voltage. It can save energy and also protect lamps and lanterns.

    Technical Specification:

    Model

    SX-JDG

    Input characteristics

    Voltage Range(VAC)

    Single phase 380 V±20%

    Frequency (Hz)

    50Hz/60Hz

    Phase

    Three phase

    Output

    Characteristics


    Voltage Range (VAC)

    According to intelligence control can be adjust

    Precision

    ±3%

    Frequency (Hz)

    50Hz/60Hz

    Waveform

    Compared output voltage waveform and input voltage waveform, its relative harmonic content increment ≤1%

    Efficiency

    98%

    Other

    Characteristics


    Display Function

    LED: Input and output voltage , current value, fault alarm

    Alarm And Protection Function

    Delay output, over voltage, under voltage, overload, and lose phase, anti-phase, short circuit and over heat alarm and protecting functions. When fault happen, it will automatic bypass function and after solve the fault, it will automatic recovery and saving energy power supply.

    Temperature ()

    -15℃+45℃

    Relative Humidity (RH)

    10%-90%(20℃±5℃)

    Altitude

    <2000m

    Protecting Class

    IP20

    Noise (Db)

    <55dB
